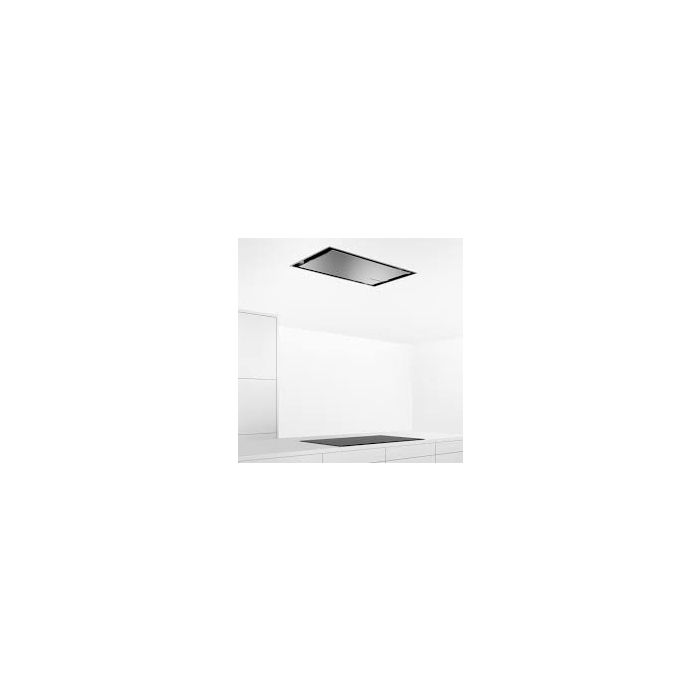

Bosch DRC97AQ50B/MG Serie | 6 Ceiling Cooker Hood 90 Cm Stainless Steel

Technical Data
Typology : Island/Ceilling
Length of electrical supply cord : 130 cm
Min. required niche size for installation (HxWxD) : 299mm x
888.0mm x 487mm mm
Minimum distance above an electric hob : 650 mm
Minimum distance above a gas hob : 650 mm
Net weight : 20.5 kg
Type of control : Electronic
Number of speed settings : 3-stage + 2 intensive
Maximum output air extraction : 459 m³/h
Boost position output recirculating : 565.0 m³/h
Maximum output recirculating air : 422 m³/h
Boost position air extraction : 798 m³/h
Number of lights (Stck) : 4
Noise level : 56 dB(A) re 1 pW
Diameter of air outlet : 150 mm
Grease filter material : Washable stainless steel
EAN code : 4242005103997
Connection rating : 174 W
Voltage : 220-240 V
Frequency : 50; 60 Hz
Plug type : GB plug
Installation type : Island
Key performance features:
- Energy Efficiency Class: A (at a range of energy efficiency
classes from A+++ to D)
- Extraction rate according to EN 61591 ø 15 cm:
max. Normal use458m³/h
Intensive798 m³/h
- Noise max. Normal Level: Noise, max. speed in normal us: 56
dB dB*
Home Connect: Remote Monitoring and Control
- Home Connect: Remote Monitoring and Control for connected
home appliances and operation via smartphone or tablet (only
in countries where Home Connect service is available)
- The Home Connect functionality can be extended by
integrating numerous applications from external cooperation
partners (partnerships)
- Voice Control enabled via popular voice assistants (only in
countries where this service is available)
- Interval function: available via Home Connect
- Silence function: available via Home Connect
Special features
- Hob based hood control
- Electronic display
- Infrared remote control
- 3 power levels and 2 intensive settings
- 4 x 3W LED lights
- Colour Temperature: 3500 K
- Dimmer function
- Interval operation
- Automatic intensive revert (6mins)
- Automatic after running (Automatic after running (10 min))
- 2 removable metal grease filter cassettes
- Saturation indicator for metal and charcoal filter
- easy to clean Inner frame
- Rim ventilation
Design
- Installation: Ceiling
- Electronic control
- Efficient BLDC technology
- Rotatable motor: possible to position the air outlet on all four
sides
Performance/technical information
- Suitable for ducted or recirculating operation
- For recirculated extraction CleanAir recirculating kit
(accessory) needed
- Extraction rate according to EN 61591 max. 798 m³/h
- Noise level according to EN 60704-3 and EN 60704-2-13 at
max. normal use exhaust air: 56 dB(A) re 1 pW
- Noise level according to EN 60704-3 and EN 60704-2-13
exhaust air:
Max. normal use:56dB(A) re 1 pW
Intensive:68 dB(A) re 1 pW
- Noise level according to EN 60704-3 and EN 60704-2-13 at
maximum normal setting: extraction rate: 56 dB (A) re 1pW
- With the Clean Air Plus recirculation kit (available as optional
accessory) your appliances reaches:
Extraction rate in recirculation mode: Max. normal use:422m³/
h
Intensive:565m³/h
Noise level in recirculation mode with Clean Air Plus odor
filter : Max. normal use:63dB(A) re 1 pW
Intensive:69dB(A) re 1 pW
- Power rating: 174 W
- Light Intensity: 659 lux
- Electrical cable length 1.3 m
- Diameter pipe Ø 150 mm (Ø 150 mm enclosed)
- Dimensions exhaust air (HxWxD): 300-300 x 900 x 500 mm
- Dimensions recirculating (HxWxD): 300-300 x 900 x 500 mm
- Blower Efficiency Class: A*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: E*
- Average Energy Consumption: 34 kWh/year*
Optional accessories
- Recirculating kit DIZ1JC2C6

* In accordance with the EU-Regulation No 65/2014
