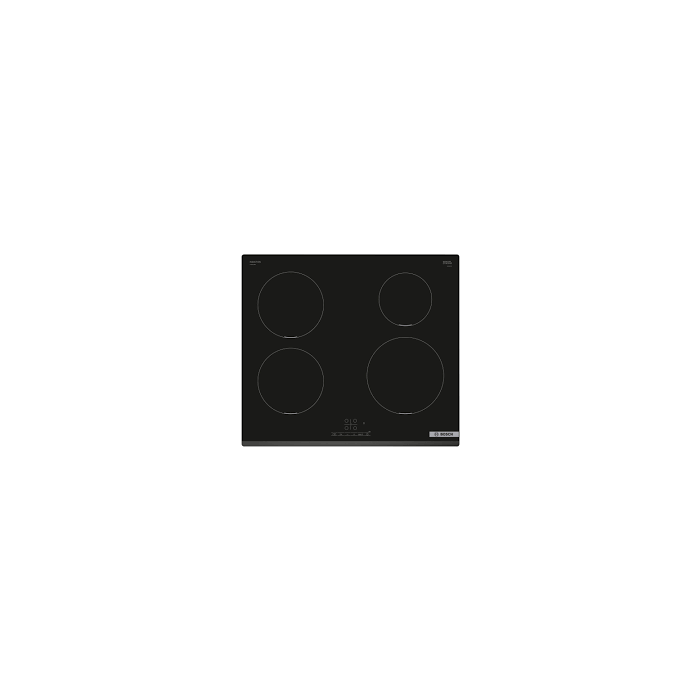

Bosch PIE631BB5E 4 Zone Induction Hob

Technical Data
Product name/family : Cooking zone ceramic
Construction type : Built-in
Energy input : Electric
Total number of positions that can be used at the same time : 4
Min. required niche size for installation (HxWxD) : 51 x 560-560
x 490-500 mm
Width of the appliance : 592 mm
Dimensions : 51 x 592 x 522 mm
Dimensions of the packed product (HxWxD) : 126 x 753 x 603
mm
Net weight : 11.1 kg
Gross weight : 13.3 kg
Residual heat indicator : Separate
Location of control panel : Hob front
Basic surface material : Ceramic
Color of surface : Black
Length of electrical supply cord : 110.0 cm
EAN code : 4242005319848
Voltage : 220-240 V
Frequency : 50; 60 Hz

Flexibility of cooking zones
- Cooking zone front left: 180 mm, 1.8 KW (max. power 3.1 KW)
- Cooking zone rear left: 180 mm, 1.8 KW (max. power 3.1 KW)
- Cooking zone rear right: 145 mm , 1.4 KW (max power 2.2
KW)
- Cooking zone front right: 210 mm, 2.2 KW (max. power 3.7
KW)
Usage convenience
- TouchSelect: control the power with imprinted +/- touch
buttons.
- Variable 17-stage power settings for each zone: precisely
adapt the heat with 17 power levels (9 main levels and 8
intermediate levels).
- Switch-off timer: switches off the cooking zone at the end of
the time set (e.g. for boiled eggs).
- Count-down timer: an alarm sounds at the end of the time set
(e.g. for pasta).
Time saving + efficiency
- PowerBoost function for all zones
: boil water faster thanks to 50% more energy than at the
highest standard level.
- QuickStart function: when switching on, the hob automatically
selects the cooking zone with cookware (when placed on a
zone whilst the hob is off).
- ReStart function: in case of unintentional switch-off, this
feature restores all previous settings by switching on the hob
again within 4 seconds.
- Quick Stop: quickly switch off a cooking zone with one longer
touch.
Design
- 60 cm: space for 4 pots or pans.
- Front facette design
Safety
- 2 stage residual heat indicator for each zone: indicates which
cooking zones are still hot or warm.
- Control panel lock: prevent unintended activation of the hob.
- Main on/off switch: switch off all cooking zones at the touch
of a button.
- Automatic safety shut off: for safety reasons, heating stops
after a preset time if not used (possible to customise).
Installation
- Dimensions of the product (HxWxD mm): 51 x 592 x 522
- Required niche size for installation (HxWxD mm) : 51 x 560 x
(490 - 500)
- Min. worktop thickness: 16 mm
- Connected load: 7.4 KW
- Power management options for 16A, 13A or 10A connection:
limit the maximum power if needed (depends on fuse
protection of electric installation).
- Power cord: 1.1 m, Cable included
