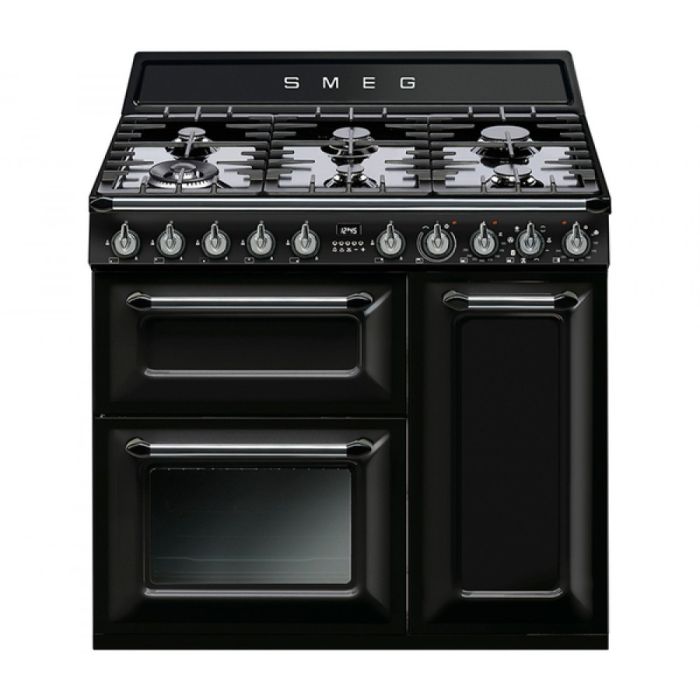

Smeg Uk TR93BL 90cm Dual Fuel Range Cooker

PROGRAMS / FUNCTIONS
Traditional cooking functions
- Static
- Fan Assisted
- Circulaire
- ECO
- Fan Assisted Base

Cleaning Functions
- Vapor Clean

PROGRAMS / FUNCTIONS AUXILIARY OVEN
Cooking functions cavity 2:
- Circulaire:

OPTIONS MAIN OVEN
- Timer: Yes
- End of cooking acoustic alarm: Yes
- Minimum Temperature: 50 °C
- Maximum temperature: 260 °C

OPTIONS THIRD OVEN
- Minimum Temperature: 50 °C
- Maximum temperature: 260 °C

HOB TECHNICAL FEATURES

Total no. of cook zones:6
1st zone position: Front left - 1st zone type: Gas - 2UR (dual)
2nd zone position: Rear left - 2nd zone type: Gas - AUX
3rd zone position: Front centre - 3rd zone type: Gas - AUX
4th zone position: Rear centre - 4th zone type: Gas - Semi Rapid
5th zone position: Front right - 5th zone type: Gas - Semi Rapid
6th zone position: Rear right - 5th zone type: Gas - Semi Rapid

- 1st zone power: 4.20 kW
- 2nd zone power: 1.00 kW
- 3rd zone power: 1.00 kW
- 4th zone power: 1.80 kW
- 5th zone power: 1.80 kW
- 6th zone power: 2.90 kW
- Type of gas burners: Standard
- Burner caps: Matt black enamelled
- Automatic electronic ignition: Yes
- Gas safety valves: Yes

MAIN OVEN TECHNICAL FEATURES

Net volume of the cavity: 61 litres
Gross volume, 1st cavity: 70 l
Cavity material: Easy clean enamel
Shelf positions: 4
Type of shelves : Metal racks
No. of lights: 1
Light type: Halogen
Light power: 40 W
Fan number: 1
Cooking time setting: Start and Stop
Door opening : Side opening
Side opening door: Yes
Removable door: Yes
Full glass inner door: Yes
Removable inner door: Yes
Total no. of door glasses: 3
No.of thermo-reflective door glasses: 1
Safety Thermostat: Yes
Cooling system: Tangential
Grill type: Electric
Tilting grill: Yes
Grill elememt: 1700 W
Large grill - Power: 2700 W
Lower heating element power: 1200 W
Upper heating element - Power: 1000 W
Circular heating element - Power: 2000 W
Temperature control: Electro-mechanical

SECOND OVEN TECHNICAL FEATURES
Net volume of the second cavity: 62 litres
Cavity material: Easy clean enamel
Shelf positions: 9
Type of shelves Metal racks
No. of lights: 1
Light type: Halogen
Light power: 40 W
Door opening: Side opening
Side opening door: Yes
Removable door: Yes
Full glass inner door: Yes
Removable inner door: Yes
No. total door glasses: 2
No. thermo-reflective door glasses: 1
Safety Thermostat: Yes
Cooling system: Tangential
Temperature control: Electro-mechanical

THIRD OVEN TECHNICAL FEATURES
Net volume, 3rd cavity: 36 l
Gross volume, 3rd cavity: 41 l
Cavity material: Easy clean enamel
Shelf positions: 2
Type of shelves: Metal racks
No. of lights: 1
Light type: Halogen
Light power: 40 W
Door opening: Flap down
Removable door: Yes
Full glass inner door: Yes
Removable inner door: Yes
No. total door glasses: 3
No. of thermo-reflective door glasses: 1
Safety Thermostat: Yes
Cooling system: Tangential
Grill type: Electric
Tilting grill: Yes
Large grill - Power: 2700 W
Temperature control: Electro-mechanical

PERFORMANCE / ENERGY LABEL

Energy efficiency class: A
GAS - Energy consumption in fan-forced convection, first cavity: 2.77 MJ
Energy consumption forced air convection (kWh) first cavity: 0.77 KWh
GAS - Energy consumption conventional mode, first cavity: 3.42 MJ
Energy consumption conventional first cavity (kWh): 0.95 KWh

ELECTRICAL CONNECTION
Nominal power: 8300 W
Voltage: 220-240 V
Voltage 2 (V): 380-415 V
Frequency: 50/60 Hz

GAS CONNECTION
Gas connection rating (W): 12600 W
Gas Type: G20 Natural gas

LOGISTIC INFORMATION
Width (mm): 900 mm
Product Height (mm): 900 mm
Depth (mm): 600 mm
Gross weight (kg): 129.700 kg
Net weight (kg): 118.600 kg
