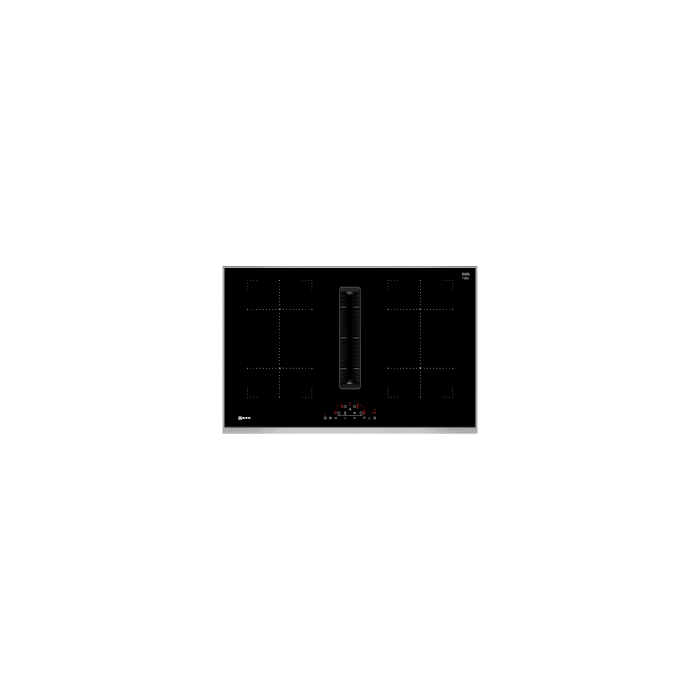

Neff T48TD7BN2/MG 80Cm Vented Induction Hob

Technical Data
Product name/family: .................................. Cooking zone ceramic
Built-in / Free-standing: ...................................................... Built-in
Energy input: ......................................................................Electric
Min. required niche size for installation (HxWxD): 223 x 750-750 x
500-500 mm
Width of the appliance: .....................................................826 mm
Dimensions: ...................................................223 x 826 x 546 mm
Dimensions of the packed product (HxWxD): . 431 x 950 x 672 mm
Net weight: ........................................................................ 25.4 kg
Gross weight: .....................................................................31.8 kg
Residual heat indicator: ....................................................Separate
Location of control panel: ......................................................Front
Basic surface material: ...................................................... Ceramic
Color of surface: .............................................Black, Stainless steel
Color of frame: .........................................................Stainless steel
Length electrical supply cord: .......................................... 110.0 cm
Sealed Burners: ......................................................................... No
heating with booster: .................................................................All
Power of 2nd heating element (kW): ...................................3.6 kW
Number of speed settings: .............................9-stage + 2 intensive
Maximum output air extraction: .......................................500 m³/h
Boost position output recirculating: ..............................595.0 m³/h
Maximum output recirculating air: ................................... 487 m³/h
Boost position air extraction: ...........................................622 m³/h
Noise level: ......................................................... 69 dB(A) re 1 pW
Odour filter: .............................................................................. No
Operating Mode: ..........................................................Convertible
Voltage: ..........................................................220-240/380-415 V
Frequency: ......................................................................50; 60 Hz
Included accessories: ................................. 1 x Slider for unducted
recirculation, 1 x Clean Air Plus odor filter
Delay Shut off modes: ............................................... 30R_12E min
• 80 cm: space for 4 pots or pans.
Flexibility of cooking zones
• 2 Combi zones
• : use bigger cookware by connecting two classic cooking zones into
one large zone.
• Cooking zone front left: 190 mm, 210 mm, 2.2 KW (max. power 3.7
KW)
• Cooking zone rear left: 190 mm, 210 mm, 2.2 KW (max. power 3.7
KW)
• Cooking zone rear right: 190 mm, 210 mm , 2.2 KW (max power
3.7 KW)
• Cooking zone front right: 190 mm, 210 mm, 2.2 KW (max. power
3.7 KW)
Usage convenience
• Touch control: control the power with imprinted +/- touch buttons.
• Variable 17-stage power settings for each zone: precisely adapt the
heat with 17 power levels (9 main levels and 8 intermediate levels).
• Keep warm function: Keep Warm Function: keep dishes warm at
preset low power level.
• Timer with automatic shut off for all zones
• : switches off the cooking zone at the end of the time set (e.g. for
boiled eggs).
• LED timer for each zone with switch off function and acoustic signal
• : an alarm sounds at the end of the time set (e.g. for pasta).
Time saving + efficiency
• Power Boost function for all zones
• : boil water faster thanks to 50% more energy than at the highest
standard level.
• QuickStart function: when switching on, the hob automatically
selects the cooking zone with cookware (when placed on a zone
whilst the hob is off).
• ReStart function: in case of unintentional switch-off, this feature
restores all previous settings by switching on the hob again within 4
seconds.
Cooking assistance
• 4 frying levels: prevents overcooking with the automatic
temperature regulation of the integrated sensor.
Design
• Ceramic glass on stainless steel trim
Safety
• 2 stage residual heat indicators: indicates which cooking zones are
still hot or warm.
• Control panel lock: prevent unintended activation of the hob.
• Control panel suspension: wipe overboiled liquids without
unintentionally changing settings (blocking all touch buttons for 30
seconds).
• Main switch: switch off all cooking zones at the touch of a button.
• Safety cut out facility: for safety reasons, heating stops after a
preset time if not used (possible to customise).
• Energy consumption display: shows the electricity consumption of
the last cooking process.
Installation
• Dimensions of the product (HxWxD mm): 223 x 826 x 546
• Required niche size for installation (HxWxD mm) : 223 x 750 x (500
- 500)
• Min. worktop thickness: 16 mm
• Connected load: 7.4 KW
• 4.6kW power output (20A); current management options for 16A,
13A or 10A connection: limit the maximum power if needed
(depends on fuse protection of electric installation).
Accessories
• Clean Air Plus odor filter, Slider for unducted recirculation included
• Suitable for installation into a 60 cm base cabinet
Integrated ventilation downdraft system
• Induction cooktop with fully integrated high-performance
downdraft extractor.
• Suitable for ducted or recirculated extraction configuration (incl.
differentiated software modes). Installation accessories for
unducted recirculation, among these four cleanAir odor filters and a
telescopic slider element, are included in the cooktop. Accessories
for other installation options are available, details in the planning
notes.
•
• Aesthetically integrated fully flush air intake design with floating,
heat resistant glass ceramics element for free movement and
placement of cookware.
• Ventilation system with 9 electronically controlled fan power levels
and 2 Boost-/Intensive fan power levels (with automatic revert) via
Touch controluser interface:
• - Automatic switch-on of ventilation system when a cooking zone is
used.
• - Automatic delayed shut-off after cooking to erase residual odors
after cooking (in specific ultra low-noise fan level, 12min in ducted
extraction, 30min in recirculated extraction, can be shut-off
manually).
• - Fully manual control possible via Touch control.
• High-performance, low-noise blower with energy-effcienct
BLDC-technology. High extraction rates at very low noises with
pleasant noise frequencies through psycho-acoustically and
aerodynamically optimized interieur with enclosed, non-visible
blower. Highly pressuredrop resistant even with longer and more
complex ductings.
• Easy-to-detach and easy-to-clean grease filter and liquid collector
unit:
• - Convenient one-hand removal of unit via floating glass ceramics
handle.
• - Integrated, large-scale, high performance stainless-steel grease
filters with 12 filtration layers and one black top layer for enhanced
aesthetical integration. Grease filtration efficiency of 94 %.
• - All parts of the unit are easy-to-clean, fully dishwasher safe and
heat resistant.
• - (Upper) Liquid collector unit with 200ml of capacity for standard
accidental spillages or cooking condensate.
• - Powerful drainage system for spillages that exceed 200ml of
liquids.
• - Liquid safety collector with additional capacity of 700ml for more
severe accidental situations. Dishwasher safe. Easily accessible and
detachable from below.
• - Overall capturing capacity of 900ml (200ml + 700ml).
• - Watertight blower system.
• Ventilation system performance:
• - Extraction performance in ducted extraction (according to EN
61591): min. normal setting 154 m3/h , max. normal setting 500
