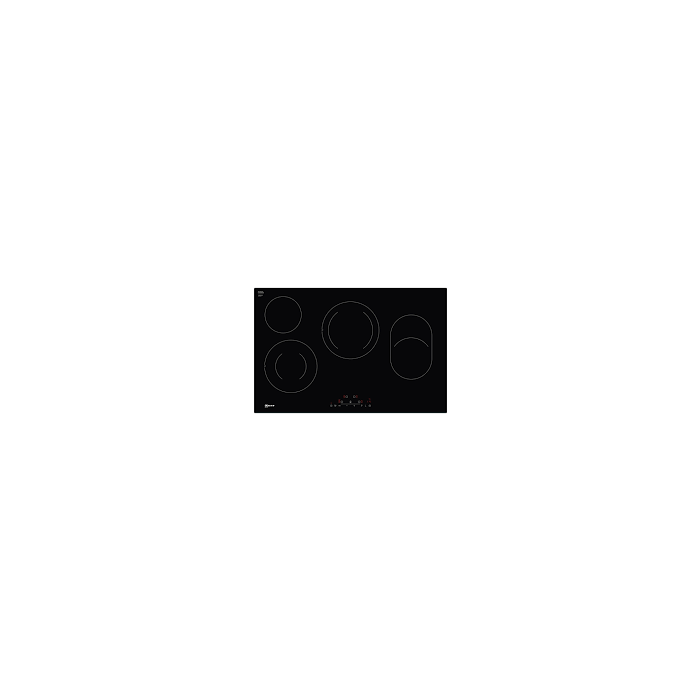

Neff TL18HD9F1/MG 80Cm Ceramic Hob

Flexibility of cooking zones
• Ring zone roaster: use roasters on the extendable cooking zone.
• Ring zone double: use regular or larger cookware on the extendable
cooking zone.
• Cooking zone front left: 120 mm, 210 mm, 0.8 KW (max. power 2.6
KW)
• Cooking zone rear left: 145 mm, 1.2 KW
• Cooking zone middle: 180 mm, 230 mm, 1.7 KW (max. power 3.4
KW)
• Cooking zone front right: 170 mm, 265 mm, 1.8 KW
Usage convenience
• Touch control: control the power with imprinted +/- touch buttons.
• Variable 17-stage power settings for each zone: precisely adapt the
heat with 17 power levels (9 main levels and 8 intermediate levels).
• Keep warm function: Keep Warm Function: keep dishes warm at
preset low power level.
• Timer with automatic shut off for all zones
• : switches off the cooking zone at the end of the time set (e.g. for
boiled eggs).
• LED timer for each zone with switch off function and acoustic signal
• : an alarm sounds at the end of the time set (e.g. for pasta).
Time saving + efficiency
• Front left, Rear center: boil water more quickly thanks to 20% more
energy than at the highest standard level.
• ReStart function: in case of unintentional switch-off, this feature
restores all previous settings by switching on the hob again within 4
seconds.
• Quick-Off: quickly switch off a cooking zone with one longer touch.
Design
• 80 cm: space for 4 pots or pans.
• Bevelled front edge
Safety
• 2 stage residual heat indicators: indicates which cooking zones are
still hot or warm.
• Control panel lock: prevent unintended activation of the hob.
• Control panel suspension: wipe overboiled liquids without
unintentionally changing settings (blocking all touch buttons for 30
seconds).
• Main switch: switch off all cooking zones at the touch of a button.
• Power on indicator light: indicates if the hob is heating.
• Safety cut out facility: for safety reasons, heating stops after a
preset time if not used (possible to customise).
• Energy consumption display: shows the electricity consumption of
the last cooking process.
Installation
• Dimensions of the product (HxWxD mm): 45 x 802 x 522
• Required niche size for installation (HxWxD mm) : 45 x 780 x (500 -
500)
• Min. worktop thickness: 16 mm
• Connected load: 9.3 KW
Product name/family: .................................. Cooking zone ceramic
Built-in / Free-standing: ...................................................... Built-in
Energy input: ......................................................................Electric
Number of cooking zones: ........................................................... 4
Min. required niche size for installation (HxWxD): .. 45 x 780-780 x
500-500 mm
Width of the appliance: .....................................................802 mm
Dimensions: .....................................................45 x 802 x 522 mm
Dimensions of the packed product (HxWxD): ..... 100 x 1025 x 620
mm
Net weight: ........................................................................ 10.9 kg
Gross weight: .....................................................................11.5 kg
Residual heat indicator: ....................................................Separate
Location of control panel: ......................................................Front
Basic surface material: ...................................................... Ceramic
Color of surface: .................................................................... Black
EAN code: ............................................................4242004259510
Voltage: .........................................................................220-240 V
Frequency: ......................................................................50; 60 Hz
